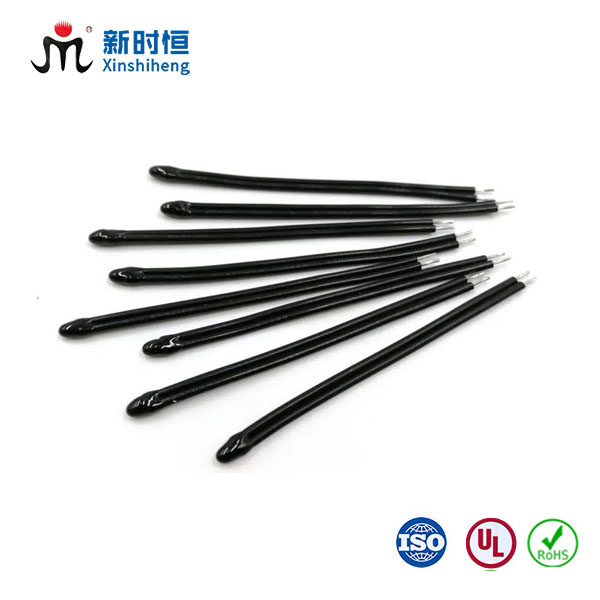

Epoxy NTC Thermistor with PVC Wire
Guangdong Xinshiheng is a professional manufacturer of NTC thermistors and temperature sensors with 20+ years of industry experience. The Epoxy NTC Thermistor with PVC Wire features a compact epoxy-encapsulated sensing element with flexible PVC-insulated parallel-wire. It provides reliable temperature measurement, good insulation, and a cost-effective solution for a wide range of temperature sensing applications.
- R25： 300Ω 2.252KΩ 4.7KΩ 5KΩ 5.2KΩ 10KΩ 20KΩ 50KΩ 100KΩ 200KΩ 240KΩ 500KΩ
- B Value： 3187K 3380K 3435K 3950K 3977K 3380K 3470K 3600K 3680K 3935K 3900K
- Resistance Accuracy： ±1%，±2%，±3%，±5%
- Cable Material： PVC
- Temperature Range： -40℃~105℃
- Length： Customized
- Parameters
- R25： 300Ω 2.252KΩ 4.7KΩ 5KΩ 5.2KΩ 10KΩ 20KΩ 50KΩ 100KΩ 200KΩ 240KΩ 500KΩ
- B Value： 3187K 3380K 3435K 3950K 3977K 3380K 3470K 3600K 3680K 3935K 3900K
- Resistance Accuracy： ±1%，±2%，±3%，±5%
- Cable Material： PVC
- Temperature Range： -40℃~105℃
- Length： Customized
Product Features
- Drop-Shape Epoxy Encapsulation — Compact design with fast thermal response.
- High Accuracy & Consistency — Precise resistance and B-value with excellent interchangeability.
- Miniature Size — Head diameter from 1.4–3.0 mm for tight installation spaces.
- Double-Sealed Structure — Excellent insulation, sealing, and impact resistance.
- Good Bend Resistance — Durable construction for reliable installation and operation.
- Reliable & Cost-Effective — Stable performance for high-volume applications.
Applications
- Home Appliances — Rice cookers, ovens, heaters, smart toilets, and dryers.
- Automotive Electronics — A/C systems, vehicle refrigerators, and EV battery packs.
- Medical & Healthcare — Digital thermometers, beauty devices, and physiotherapy equipment.
- Industrial Equipment — Printers, copiers, industrial instruments, and 3D printers.
- Battery Protection — Power banks, laptop batteries, and energy storage battery packs.
Dimensions
Standard R-T Table
For custom specifications, please contact us for details.
Ordering Notes
Please provide the following parameters when placing an order for NTC temperature sensors:
- Resistance value
- B-value
- Operating environment (e.g., requirements for waterproof, moisture-proof, cold-resistant, or others).
- Intended application (used to select appropriate temperature-resistant wires, resistance values, etc.).
- Operating temperature range.
- Accuracy requirement (1%, 2%, 3%, 5% optional).
- Wire type and length (Customizable).
- Connector requirement at the wire end (Optional models include XH, PH, ZH, PA, etc.).
As a professional manufacturer of NTC thermistors and temperature sensors, we offer a wide range of product parameters and specifications. Please contact Xinshiheng engineer team to customize parameters and dimensions for your specific requirements.
