Solar Copper Housing NTC Temperature Sensor
Guangdong Xinshiheng is a professional manufacturer of NTC thermistors and temperature sensors. This solar temperature sensor uses a high-sensitivity, highly reliable NTC thermistor chip with a copper housing, providing efficient heat transfer and convenient installation for remote temperature monitoring. Various parameters, dimensions, housing structures, and wire configurations can be customized to meet different application requirements.
- Element： NTC
- R25： 1K 4.7K 5K 5.2K 10K 20K 50K 100K 240K
- B Value： 3187K 3380K 3435K 3480K 3950K 3977K
- Resistance Accuracy： ±1%，±2%，±3%，±5%
- Cable Material： PVC，XLPE，PTFE，Teflon，Silicone
- Temperature Range： -40℃~250℃
- Length： Customized
- Parameters
- Element： NTC
- R25： 1K 4.7K 5K 5.2K 10K 20K 50K 100K 240K
- B Value： 3187K 3380K 3435K 3480K 3950K 3977K
- Resistance Accuracy： ±1%，±2%，±3%，±5%
- Cable Material： PVC，XLPE，PTFE，Teflon，Silicone
- Temperature Range： -40℃~250℃
- Length： Customized
Product Features
- Fast thermal response speed.
- Metal housing encapsulation provides high-temperature and corrosion resistance, with stainless steel or copper material options available.
- Long-term high stability of resistance value.
- Easy installation, designed for direct surface temperature measurement.
- Glass-encapsulated thermistor core element used.
- Excellent heat resistance
Application
- Solar & Kitchen Appliances: Solar energy systems, milk warmers, yogurt makers, egg cookers.
- Home Appliances: Fan heaters, dishwashers, disinfection cabinets.
- Laundry & Drying: Washing machines, clothes dryers, low-to-medium temperature drying ovens.
- Climate Control: Incubators, constant-temperature chambers, and other temperature measurement and control applications.
Dimensions
Standard R-T Table
For custom specifications, please contact us for details.

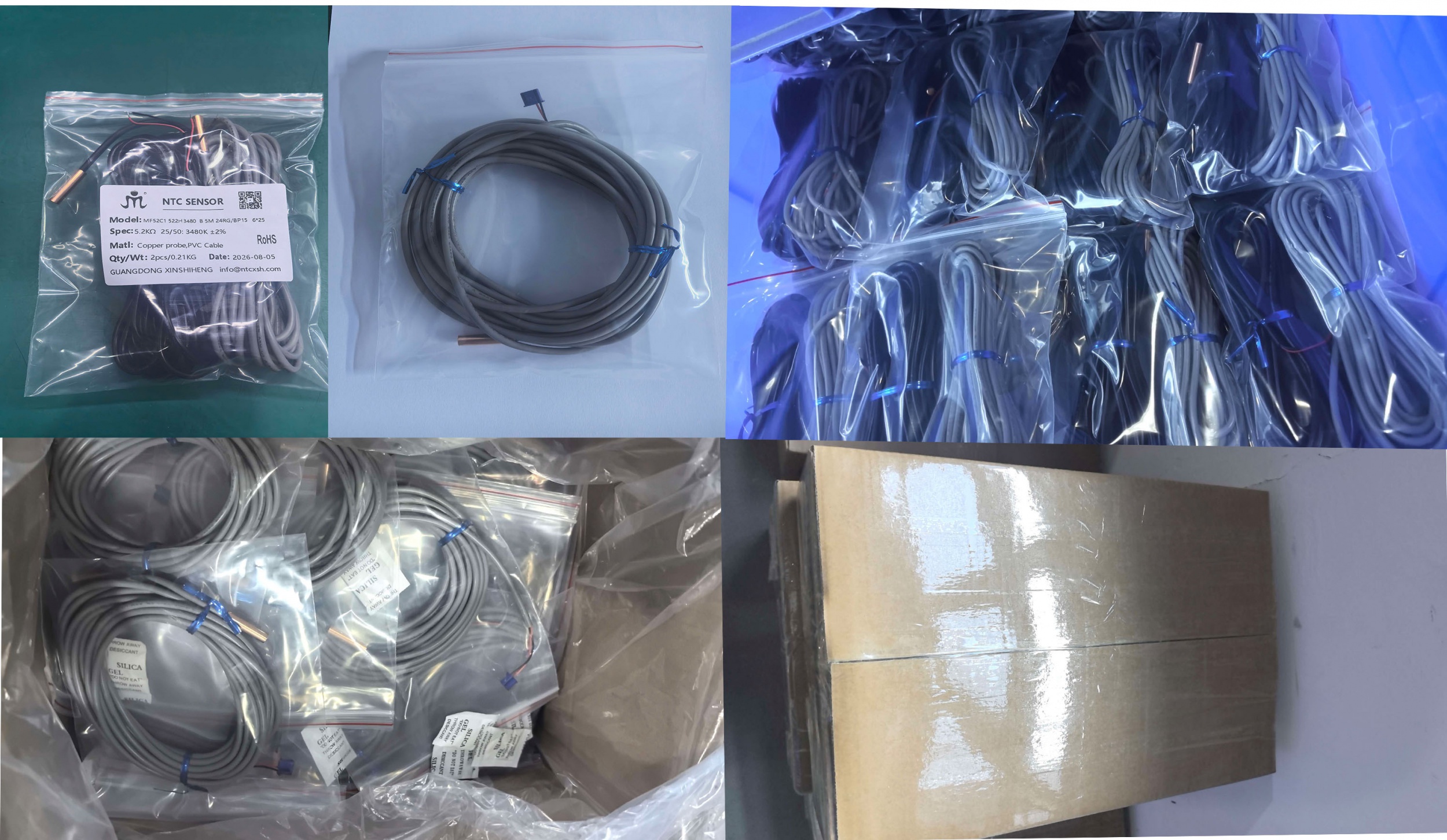

Packing
Ordering Notes
Please provide the following parameters when placing an order for NTC temperature sensors:
- Resistance value
- B-value
- Operating environment (e.g., requirements for waterproof, moisture-proof, cold-resistant, or others).
- Intended application (used to select appropriate temperature-resistant wires, resistance values, etc.).
- Operating temperature range.
- Accuracy requirement (1%, 2%, 3%, 5% optional).
- Housing material (Copper, Brass, Stainless Steel, ABS, Epoxy Resin, etc.).
- Housing dimensions (Customizable).
- Wire type and length (Customizable).
- Connector requirement at the wire end (Optional models include XH, PH, ZH, PA, etc.).
As a professional manufacturer of NTC thermistors and temperature sensors, we offer a wide range of product parameters and specifications. Please contact Xinshiheng engineer team to customize parameters and dimensions for your specific requirements.
