Axial Glass-Encapsulated NTC Thermistors
The Axial Glass-Encapsulated NTC Thermistor features a hermetically sealed glass body and symmetrical axial dumet lead wires, this diode-style configuration delivers exceptional moisture resistance, mechanical strength, and long-term stability up to 300°C. Its standardized package makes it highly compatible with automated PCB assembly line taping and placement equipment.
- R25： 5K 10K 50K 100K
- B Value： 3435K 3950K
- Resistance Accuracy： ±1%，±2%，±3%，±5%
- Cable Material： 杜美丝线
- Temperature Range： -40℃~250℃
- Length： 可定制
- Parameters
- R25： 5K 10K 50K 100K
- B Value： 3435K 3950K
- Resistance Accuracy： ±1%，±2%，±3%，±5%
- Cable Material： 杜美丝线
- Temperature Range： -40℃~250℃
- Length： 可定制
Product Features
- Adopt glass-encapsulated technology, good sealing performance
- Stable & reliable performance in high temperature&high humidity environments
- Small size, high accuracy, fast response, uniformity in structure
- Do-35 packaging, available for automatic installation on PCB
Applications
- Kitchen appliances: air purifier, refrigerator, freezer, air conditioner, washing machine, dryer, dishwasher
- Cooking appliances: induction cooker, rice cooker, microwave oven, barbecue machine, bread machine
- Hot water supply system: water heater, electric kettle
- Industrial equipment: intelligent electricity meter, container, refrigerator, water generator, dehumidifier
- Medical care: body surface thermometer, eye care instrument, massager

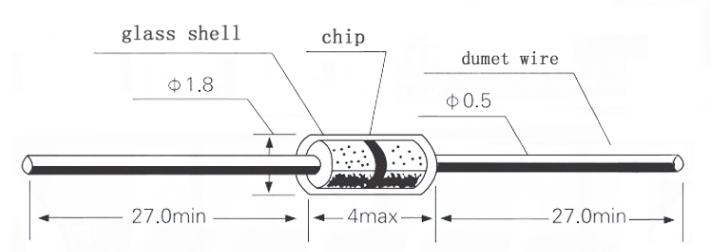

Dimensions(mm)
Standard R-T Table
For custom specifications, please contact us for details.
Ordering Notes
Please provide the following parameters when placing an order for NTC thermistors:
- Resistance value
- B-value
- Operating environment (e.g., requirements for waterproof, moisture-proof, cold-resistant, or others).
- Intended application (used to select appropriate temperature-resistant wires, resistance values, etc.).
- Operating temperature range.
- Accuracy requirement (1%, 2%, 3%, 5% optional).
- Wire type and length (Customizable).
- Connector requirement at the wire end (Optional models include XH, PH, ZH, PA, etc.).
As a professional manufacturer of NTC thermistors and temperature sensors, we offer a wide range of product parameters and specifications. Please contact Xinshiheng engineer team to customize parameters and dimensions for your specific requirements.
