Radial Glass-Encapsulated NTC Thermistor
The Radial Glass-Encapsulated NTC Thermistor features a hermetically sealed radial glass bead and premium Dumet wire leads,offering superior resistance to moisture, oxidation, and corrosion. With a wide operating range reaching up to 400°C, an ultra-compact size, and millisecond-level response times, it delivers exceptional stability and accuracy in the harshest thermal environments.
- R25： 300Ω 2.252KΩ 4.7KΩ 5KΩ 5.2KΩ 10KΩ 20KΩ 50KΩ 100KΩ 200KΩ 240KΩ 500KΩ
- B Value： 3187K 3380K 3435K 3950K 3977K 3380K 3470K 3600K 3680K 3935K 3900K
- Resistance Accuracy： ±1%，±2%，±3%，±5%
- Cable Material： Dumet Wire
- Temperature Range： -40℃~400℃
- Length： Customized
- Parameters
- R25： 300Ω 2.252KΩ 4.7KΩ 5KΩ 5.2KΩ 10KΩ 20KΩ 50KΩ 100KΩ 200KΩ 240KΩ 500KΩ
- B Value： 3187K 3380K 3435K 3950K 3977K 3380K 3470K 3600K 3680K 3935K 3900K
- Resistance Accuracy： ±1%，±2%，±3%，±5%
- Cable Material： Dumet Wire
- Temperature Range： -40℃~400℃
- Length： Customized
Product Features
- Small head size: 0.8~2.3mm
- Operating temperature: -60℃~+400℃
- Glass-encapsulated technology
- Small size, fast response, stable structure
- Compatible to all kinds of packaging technologies
- Stable and reliable performance in high temperature and high humidity environments
Applications
- Kitchen appliances: electric iron, dishwasher, coffee machine, induction cooker, rice cooker, microwave oven, barbecue machine, bread machine
- Hot water supply system: water purifier, water heater, wall-mounted furnace, boiler
- Industrial equipment: battery unit, engine, oil tank
- Medical care: body surface thermometer, medical probes

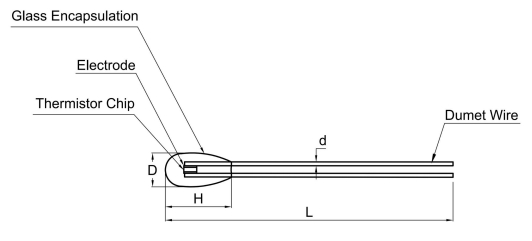

Dimensions(mm)
Standard R-T Table
For custom specifications, please contact us for details.
Ordering Notes
Please provide the following parameters when placing an order for NTC thermistors:
- Resistance value
- B-value
- Operating environment (e.g., requirements for waterproof, moisture-proof, cold-resistant, or others).
- Intended application (used to select appropriate temperature-resistant wires, resistance values, etc.).
- Operating temperature range.
- Accuracy requirement (1%, 2%, 3%, 5% optional).
- Wire type and length (Customizable).
- Connector requirement at the wire end (Optional models include XH, PH, ZH, PA, etc.).
As a professional manufacturer of NTC thermistors and temperature sensors, we offer a wide range of product parameters and specifications. Please contact Xinshiheng engineer team to customize parameters and dimensions for your specific requirements.
