NTC Bare Chip Silver Electrode
Xinshiheng is a leading manufacturer specializing in NTC thermistors and temperature sensors. Our Silver Electrode NTC Thermistor Chips (Bare Die) feature a premium silver-plated surface finish to deliver exceptional precision. Engineered for high reliability, these high-precision NTC semiconductor dies are the ideal choice for integrating into multi-functional hybrid modules and manufacturing ultra-accurate NTC temperature sensors.
- R25： 300Ω 2.252KΩ 4.7KΩ 5KΩ 5.2KΩ 10KΩ 20KΩ 50KΩ 100KΩ 200KΩ 240KΩ 500KΩ
- B Value： 3187K 3380K 3435K 3950K 3977K 3380K 3470K 3600K 3680K 3935K 3900K
- Resistance Accuracy： ±1%，±2%，±3%，±5%
- Temperature Range： -40℃~300℃
- Parameters
- R25： 300Ω 2.252KΩ 4.7KΩ 5KΩ 5.2KΩ 10KΩ 20KΩ 50KΩ 100KΩ 200KΩ 240KΩ 500KΩ
- B Value： 3187K 3380K 3435K 3950K 3977K 3380K 3470K 3600K 3680K 3935K 3900K
- Resistance Accuracy： ±1%，±2%，±3%，±5%
- Temperature Range： -40℃~300℃
Product Features
1.Silver Electrodes with High Cost-Efficiency.
2.Fully compatible with gold (Au), aluminum (Al), and silver (Ag) wire bonding processes.
3.High Reliability & Stability
4.Ultra-Compact & Fast Response
5.Ideal for various encapsulation
7.Customized dimensions, resistance values, and B-values to meet your specific design requirements.
Applications
1. Wire Bonding Applications:
- Infrared (IR) Thermopiles
- IGBT Modules
- Thermal Printheads (TPH)
- Integrated Circuits (IC) & Semiconductor Hybrid Modules
- Power Modules / Power Blocks
2. Medical & Specialized Sensors:
- High-precision Temperature Sensors
- Medical Temperature Probes & Catheters
- X-ray Detectors (Thermal Compensation)
3. Smart Home & Consumer Appliances:
- Household Appliance Temperature Controls
- Smart Home Systems & IoT Devices
- Solar Energy Systems & Inverters
4. Automotive Electronics:
- Automotive HVAC / Air Conditioning Systems
- Engine Thermal Management & Powertrain Controls
Parameters

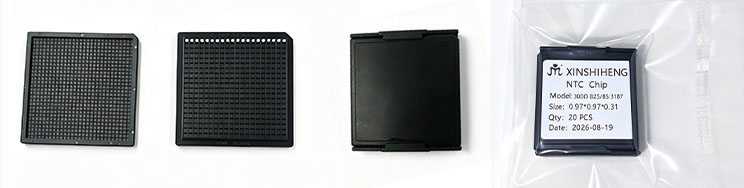

Packing
- Packaging Type: Antistatic Waffle Pack
- Standard Quantity per Waffle Pack: 2000 pcs
Standard R-T Table
For custom specifications, please contact us for details.
